Доступно к заказу
Цена по запросу

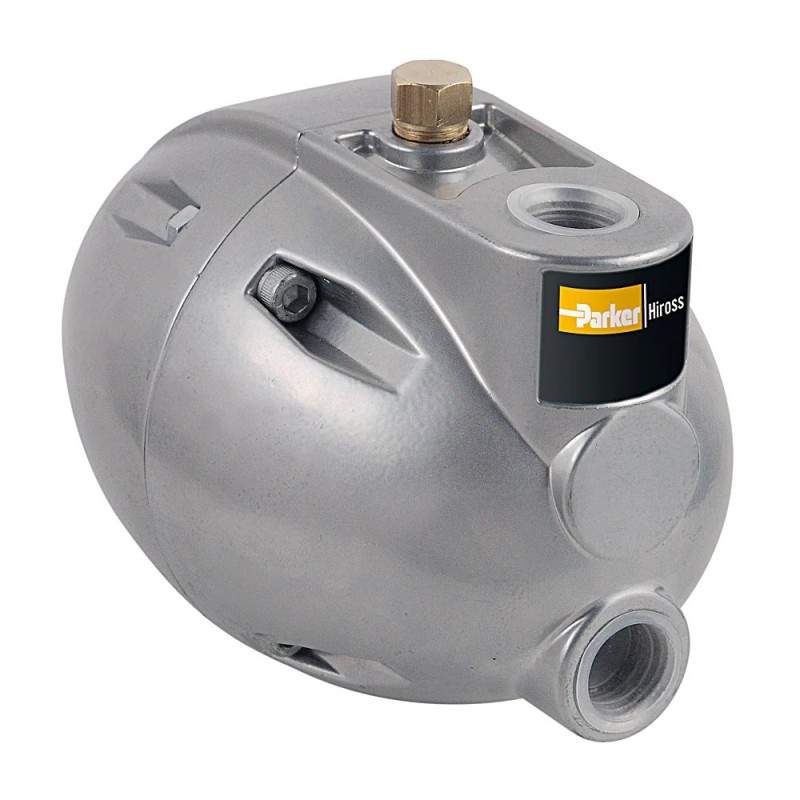

Zero loss mechanical float condensate drains for industrial compressed air and biogas treatment applications.
HDF series drains are compact and highly reliable automatic float controlled condensate drains for industrial compressed air and biogas treatment applications. Because the drain never runs completely dry, no air/gas is lost during the discharge process. HDF series condensate drains therefore reduce the waste of compressed air/gas which has a positive effect on the efficiency of the whole system.
Benefits:
• Zero air/gas loss
• Improved reliability due to large cross section outlet valve opening which minimizes the chance of blockage
• A low velocity condensate outlet ensures that no emulsion is created and supports installation of a static oil/water separator
• No need for electrical wiring, as no power supply is required
• Manual drain valve for discharge and operational check fitted as standard
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
Характеристики
| Расход: | 6000 m³/h (3532 cfm) |
| Рабочее давление: | 1-16 barg (15-232 psig) |
| Тип соединения: | BSPP |
| Размер порта: | Inlet: 1" / Outlet: ½" |
| Варианты исполнения: | None |
| Подразделение: | Gas Separation and Filtration Division EMEA |
| Бренд: | Parker |
| Технологии: | Filtration |
| Применение: | Compressed Air and Biogas Applications |
| Тип продукта: | Condensate Drain |
| Модель продукта: | External Float Drain |
| Серия продуктов: | HDF |
| Промышленность: | Industrial Manufacturing EquipmentFood & BeverageAutomotiveElectronicsPharmaceuticalsBiogas |
| Рабочая температура: | 2 to 60°C(35 to 140°F) |
| Требования к электроснабжению: | Not Applicable |
| Материалы изготовления: | Body: AluminiumFloat: PlasticLever: Plastic |
| Высота: | 111 mm(4.4 inch) |
| Ширина: | 156 mm(6.1 inch) |
| Глубина: | 108 mm(4.3 inch) |
| Вес: | 0.9 Kg(2.0 lbs) |
- Бренд
- Parker
- Варианты исполнения
- None
- Вес
- 0.9 Kg(2.0 lbs)
- Высота
- 111 mm(4.4 inch)
- Глубина
- 108 mm(4.3 inch)
- Материалы изготовления
- Body: AluminiumFloat: PlasticLever: Plastic
- Модель продукта
- External Float Drain
- Подразделение
- Gas Separation and Filtration Division EMEA
- Применение
- Compressed Air and Biogas Applications
- Промышленность
- Industrial Manufacturing EquipmentFood & BeverageAutomotiveElectronicsPharmaceuticalsBiogas
- Рабочая температура
- 2 to 60°C(35 to 140°F)
- Рабочее давление
- 1-16 barg (15-232 psig)
- Размер порта
- Inlet: 1" / Outlet: ½"
- Расход
- 6000 m³/h (3532 cfm)
- Серия продуктов
- HDF
- Технологии
- Filtration
- Тип продукта
- Condensate Drain
- Тип соединения
- BSPP
- Требования к электроснабжению
- Not Applicable
- Ширина
- 156 mm(6.1 inch)
