Артикул: FBO-10-DP

В наличии

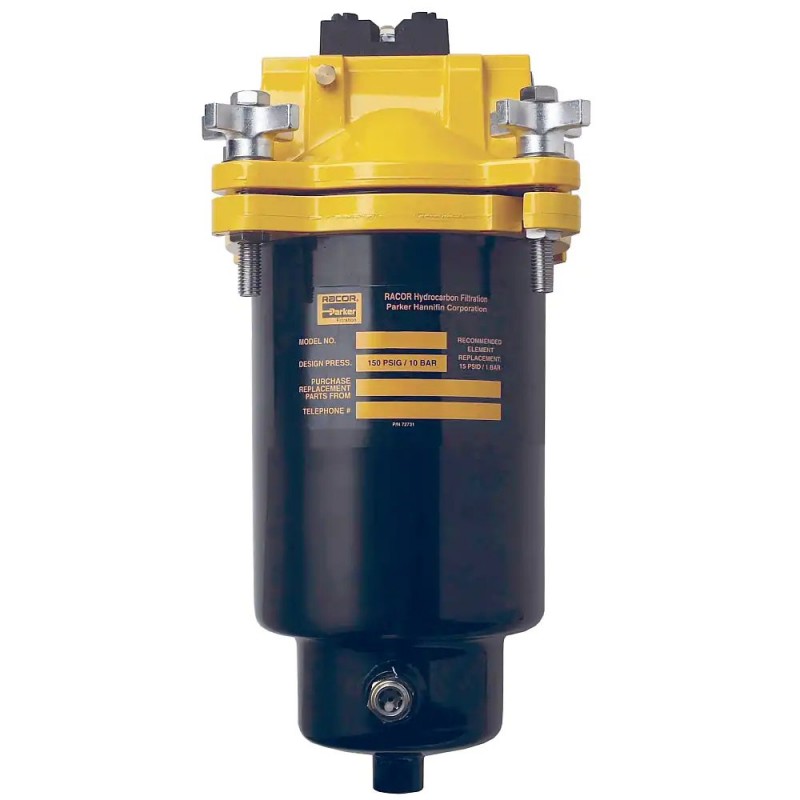

Fuel Filtration Assemblies – Racor FBO Series FBO-⁠10-⁠DP

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@ru-parker.com

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 134-22-05

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. They can be used for a variety of applications, including mobile refuelers, refueling cabinets, diesel fuel dispensing pumps, and primary fuel filter/water separators on large diesel engines.

The assemblies feature a locking ring collar, which attaches the filter housing to the aluminum die-cast filter head with four oversized wing bolts. The locking ring collar allows a single person to perform service by hand-loosening the four collar bolts, rotating and lowering the bowl assembly, and removing the dirty element. With the new element installed, the procedure is reversed. The wing bolts are then hand tightened to complete the service.

Several FBO models are available for purchase, including basic single units, pre-configured units, and duplex/manifold units. Three different cartridge types are available in multiple micron ratings. FBO assemblies support flow rates ranging from 20 to 75 gpm (76 to 284 lpm), depending on the model, type of element installed, and fuel type being filtered.

The FBO’s housing is powder-coated and capable of withstanding up to 150 psi (1034 kPa) at 240°F (116°C). A manual vent valve on the head and a manual drain valve in the steel bowl help provide ease of service. Some assemblies include a heavy-duty mounting bracket with integral fittings that extend the 1-1/2” NPT ports connections.

Dual (DFBO) unit assemblies have a single manifold head with a central rotary valve for diverting fuel flow from one housing to the other. With this valve, a clean reserve filter can be brought into service while the engine is running.

Notes on Use

• On DFBO assemblies, the central rotary valve for diverting fuel flow from one housing to the other is not internally leak-proof, so servicing a dirty element should only take place with the engine off.
• For FBO assemblies that include a filter in the housing, choose the desired type and micron rating. For FBO housings that do not come with an element installed, you will need to purchase elements separately. For additional information, consult literature in the “Product Support” tab.
Markets:
• Agriculture
• Construction
• Power Generation
• Oil and Gas
• Marine

Applications:
• Diesel and Biodiesel (e.g., fuel dispensing systems, marine fuel docks, mobile refueling units, refueling cabinets, fuel filter water separators)

Benefits:
• Removes water that enters the system during refueling. Any water present in the fuel stream will support bacterial growth, which can cause clogged filters and result in the formation of corrosive acids. Susceptible components then rust and corrode, leading to erosion and wear of critical fuel system components.
• Removes hard particles present in air that are introduced during fueling, such as sand and silica.
• Prevents costly injector damage and increases operational life of downstream filters.
• Saves time and money by eliminating unplanned maintenance and unscheduled downtime from system component failure.
• Available in a wide range of configurations to meet the unique requirements of customers’ engines, including marine (UL-approved) versions.
• Locking ring collar allows a single person to easily perform service
• Perfect for biofuel applications.
Features:
• Die-cast aluminum head
• Steel filter bowl assembly
• Powder-coated components
• Locking ring collar held with oversized hand tightened wing bolts
• 1-1/2” NPT inlet and outlet standard, 2X 1" NPT on Duplex model
• Manual vent valve
• 150 PSI @ 240°F (10.3 bar @ 115°C) maximum design pressure/temperature
• Optional or included Manual drain valve (#73225-.5)
• Optional or included Mounting Bracket (#73084)
• Optional or included Water Sight Glass (#72710)
• Included Differential Pressure Indicator on some models (not available as upgrade)
• Optional self-contained electronic water sensing probe: Order Part# RK18-1656 bushing + RK30880E Sensor self-contained sensor/probe
• Optional electric heater # FBO-HTR-KIT (not for gasoline)


Характеристики

Количество корпусов:One Head and Housing
Предварительно установленное дополнительное оборудование:DP Indicator
Расход (гал/мин):Up to 25 in Diesel, 55 Gasoline
Фильтрующий элемент:Filter Element Ordered Separately
Расход (л/ч):Up to 95 in Diesel, 200 Gasoline
Вариант использования:Industrial
Серия продуктов:Cartridge FF/WS, FBO
Бренд:Racor
Для типа жидкости:Diesel/B20/Gasoline
Тип монтажа:Optional Bracket Kit Part# 73084
Номинальное значение в микронах:1, 5, 10, 25 available μm
Тип клапана:None
Тип тепла:Option: Part# FBO-HTR-KIT
Материалы изготовления:Aluminum head, Steel Bowl
Размер порта:2X 1-1/2" NPT
Применение:Fuel Transfer/Engine Filtration
С датчиком воды:Order Part# RK18-1656 bushing + RK30880E Sensor
Номинальное давление:150 PSI @ 240°F (10.3 bar @ 115°C)
Рабочая температура:-40°F to +255°F (-40°C to +124°C) cont
Вес:15 lb / 6.8 kg
Совместимый элемент:FBO SERIES REPLACEMENT ELEMENTS
Вариант со сливом:Drain Valve Included
Тип индикатора:Delta P Indicator Included
Дополнительные функции:Water Sight Glass Part #72710
Высота:20 in/50.3 cm
Ширина:8.6 in/21.8 cm

Технические характеристики FBO-10-DP

Характеристики

Бренд
Racor
Вариант использования
Industrial
Вариант со сливом
Drain Valve Included
Вес
15 lb / 6.8 kg
Высота
20 in/50.3 cm
Для типа жидкости
Diesel/B20/Gasoline
Дополнительные функции
Water Sight Glass Part #72710
Количество корпусов
One Head and Housing
Материалы изготовления
Aluminum head, Steel Bowl
Номинальное давление
150 PSI @ 240°F (10.3 bar @ 115°C)
Номинальное значение в микронах
1, 5, 10, 25 available μm
Предварительно установленное дополнительное оборудование
DP Indicator
Применение
Fuel Transfer/Engine Filtration
Рабочая температура
-40°F to +255°F (-40°C to +124°C) cont
Размер порта
2X 1-1/2" NPT
Расход (гал/мин)
Up to 25 in Diesel, 55 Gasoline
Расход (л/ч)
Up to 95 in Diesel, 200 Gasoline
С датчиком воды
Order Part# RK18-1656 bushing + RK30880E Sensor
Серия продуктов
Cartridge FF/WS, FBO
Совместимый элемент
FBO SERIES REPLACEMENT ELEMENTS
Тип индикатора
Delta P Indicator Included
Тип клапана
None
Тип монтажа
Optional Bracket Kit Part# 73084
Тип тепла
Option: Part# FBO-HTR-KIT
Фильтрующий элемент
Filter Element Ordered Separately
Ширина
8.6 in/21.8 cm
