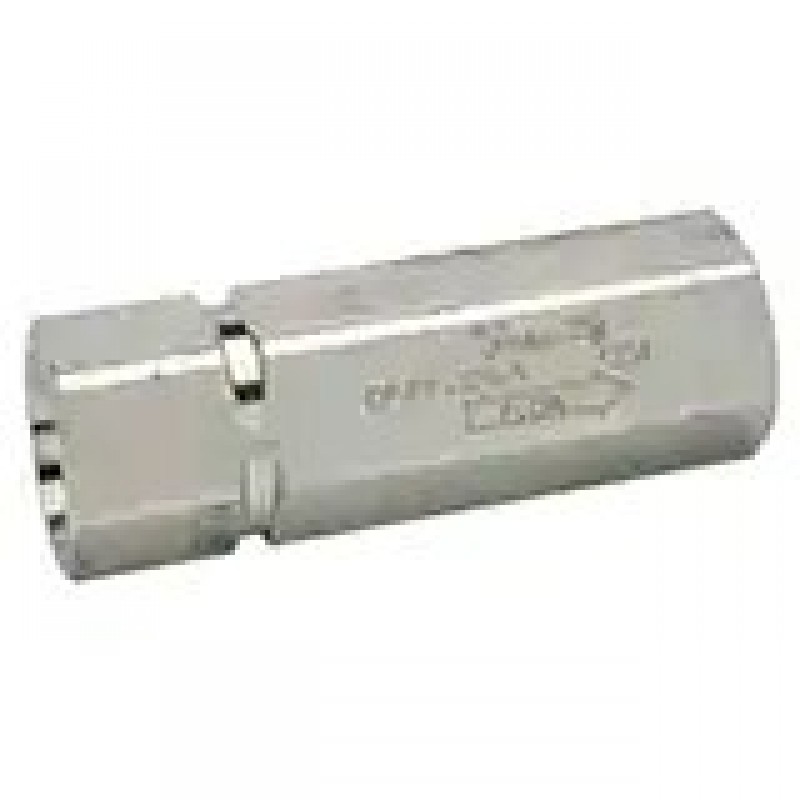

Soft Seat In-Line Check Valves (5000 psi) One Piece Body, Female Fitting Ends - CPIFF Series CPIFF-3P-25

Parker check valves are unidirectional flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

CPIFF Series Check Valves (5,000 psi) are soft seat, zero leakage poppet check valves with compact one piece construction. Standard crack pressures are 5, 15, 25, and 65 psi. These valves are available in a wide range of sizes up to 1"", with female fitting ends and flow capacities up to 30 gpm.

Check valves are important components that are often overlooked when building a fluid system. A check valve can optimize system performance in the following ways:
• Ensure hydraulic fluid flows in only one direction
• Eliminate potential damage from back pressure
• Isolate sections of a system or system components

Basic check valve construction consists of a valve body with an inlet and an outlet port. Inside, a moveable poppet valve is controlled by spring pressure. In most cases the valve is normally closed, opening when the fluid pressure is greater than the spring force (crack pressure), thus allowing the fluid to flow in only one direction. When reverse flow attempts to enter though the outlet the poppet closes and flow through the valve is stopped.

Soft seat check valves have an O-ring or similar elastomeric seal between the poppet and body for improved leak resistance. The soft seat design is most compatible with ""clean” systems and is not indented for use in systems that have high surge flow. The seal material dictates the temperature range of the valve.

Technical Characteristics:
• Sizes: 1/4” to 1”
• Materials: Steel, Brass
• Seal Material: Fluorocarbon
• Standard Crack Pressures (psi): 5, 15, 25, and 65
• Port Ends: Female NPSF, Female SAE, Female British Parallel BS 2779
• Optional crack pressures available
• Orificed valve option
• Custom shapes and configurations

Note: Some options may not be standard configurations. Please contact the Quick Coupling Division for availability and delivery.

Markets:
• Industrial
• Construction
• Agriculture
• Transportation
• MRO

Features/Benefits:
• Allows the fluid to flow in only one direction, protecting the system from fluid back pressure
• Soft seated valve creates a leak free seal
• Fluorocarbon seal is standard
• Optional crack pressures are available on request
• Optional orificed valve allows metered flow when the valve is closed. Orifice bore size is determined by application requirements.
• Custom shapes and configurations can integrate special features to reduce the number of components and potential leak points in a system

Applications:
• Industrial, mobile, and construction equipment
• Restrictor Check Circuit
• High/Low Pump Circuit
• Slow Advance/Rapid Return Circuit
• Oil Cooler By-Pass Circuit
• Sequence Circuit
• Pilot Pressure Circuit
• Accumulator Circuit
