Cartridge Engine Air Filters – Racor ECO, AF, and EA Series AFSF4

Racor Cartridge Engine Air Filters ensure delivery of clean, purified air into gasoline and diesel engines. They come available with a wide range of flow rate and mounting options, making them suitable for use in any engine or application.

Racor AFSF Air Filter Series – About:

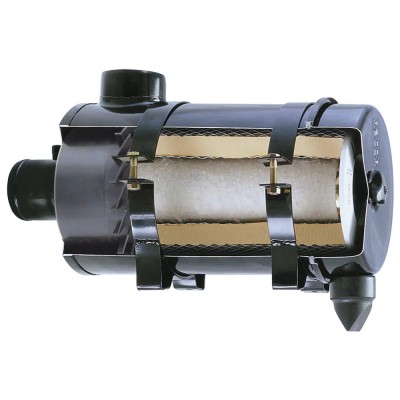

Racor AFSF Series standard air filters are heavy-duty three-stage air filters for on-highway and stationary applications and are designed to be connected to the air intake of gasoline or diesel engines. They have a static vane first stage, followed by standard primary and safety elements. The housing and universal mounting bracket are powder coated steel for a durable, corrosion resistant finish. The standard tube-style inlet is suitable for use with Racor dynamic rotor pre-cleaners.

Racor AFSF Air Filter Series - How They Work:

Air flows through stationary vanes causing the entering air to spin. The resulting centrifugal force separates the heaviest impurities (dust, dirt, insects and other debris) from the air stream. These contaminants are discharged automatically through an integral evacuator valve. Only purified air flows to the air filters (primary and safety stages of filtration).

Racor AFSF Air Filter Series - Additional Features and Benefits:

- Flow Range: 53 to 1517 cfm (1.5 to 43 m3/min) (Depending on product selected)
- Engine Power Range: 30 to 450 HP (22 to 336 KW) (Depending on product selected)
- Pre-cleaner static vanes remove up to 90% of large contaminants
- Horizontal mounting
- Safety element is standard
- Powder coated steel housing and bracket
- Includes mounting bands
