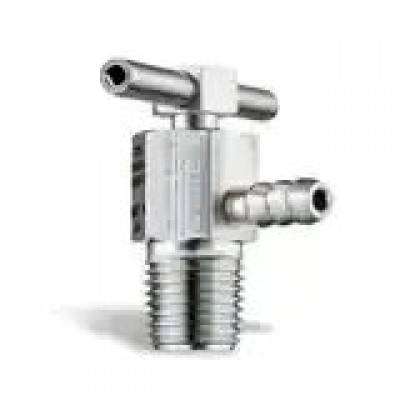

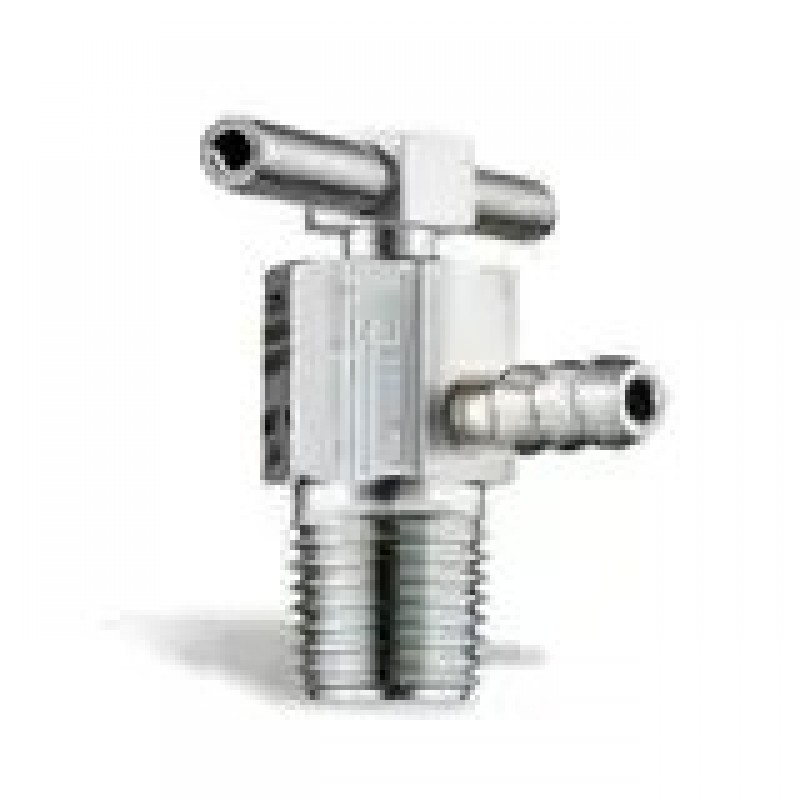

Bleed Valve, 10,000 PSI - BV Series 8F5-BV8-M

Parker’s BV Series Bleed Valves are designed to vent a system’s line pressure either to atmosphere or a separate containment line. These compact bleed valves are rated to pressures up to 10,000 PSI (689 BAR).

Parker BV Series Bleed Valves are designed for systems up to 10,000 PSI (689 BAR).These bleed valves are used on other valves or systems such as multi-valve manifolds or gauge/root valves. Functionally, the bleed valve vents the system line pressure either to atmosphere or to a separate containment line when used with the optional barbed vent tube. These compact valves provide a positive stop/vent tube design that prevents the accidental removal of the stem. This safety feature is not found in many common bleed valves.

Parker bleed valves are used whenever an instrument is removed from a system or to assist in the calibration of control devices. The BV Series is also recommended for use in bleeding hydraulic systems and comes in both NPT Male Pipe and SAE ports for installation flexibility.

Markets:

• Power
• Chemical/Petrochemical
• Pulp and Paper
• Offshore

Features/Benefits:

• Available in stainless steel, carbon steel and Alloy N24135
• Vent tube directs excess gas or liquid from system lines
• Chrome plated stem provides extended cycle life with improved sealability
• Positive stop/vent tube design prevents accidental removal of the stem
• Compact design
• Wrench actuation
• Available in a variety of end configurations including male pipe and SAE ports
• 100% factory tested
• Barbed vent tube option enables containment of vented media
• Optional T-bar handle for wrench-less actuation


Applications:
• Multi-Valve Manifolds
• Pressure Tanks
• Calibration systems
• Hydraulic Systems
Parker BV Series Bleed Valves are designed for systems up to 10,000 PSI (689 BAR).These bleed valves are used on other valves or systems such as multi-valve manifolds or gauge/root valves. Functionally, the bleed valve vents the system line pressure either to atmosphere or to a separate containment line when used with the optional barbed vent tube. These compact valves provide a positive stop/vent tube design that prevents the accidental removal of the stem. This safety feature is not found in many common bleed valves.

Parker bleed valves are used whenever an instrument is removed from a system or to assist in the calibration of control devices.The BV Series is also recommended for use in bleeding hydraulic systems and comes in both NPT Male Pipe and SAE ports for installation flexibility.

Markets:

• Power
• Chemical/Petrochemical
• Pulp and Paper
• Offshore

Features/Benefits:

• Available in stainless steel, carbon steel and Alloy N24135
• Vent tube directs excess gas or liquid from system lines
• Chrome plated stem provides extended cycle life with improved sealability
• Positive stop/vent tube design prevents accidental removal of the stem
• Compact design
• Wrench actuation
• Available in a variety of end configurations including male pipe and SAE ports
• 100% factory tested
• Barbed vent tube option enables containment of vented media
• Optional T-bar handle for wrench-less actuation


Applications:
• Multi-Valve Manifolds
• Pressure Tanks
• Calibration systems
• Hydraulic Systems
