Артикул: 5257312929

В наличии

PAF 11 - 1 Inch Pleated Filter 5257312929

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@ru-parker.com

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 134-22-05

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

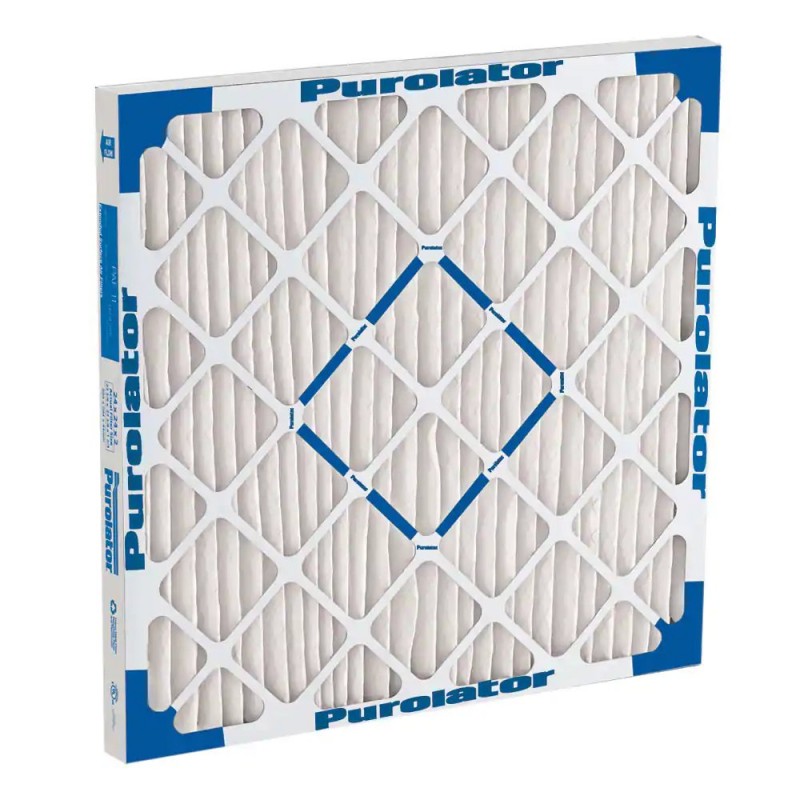

PAF 11™ pleated air filters with Purolator® technology are specially manufactured for air handling systems that require high efficiency and non-shedding filtration media. Available in three sizes (1-, 2- or 4-in thickness). Perform to MERV 11.

Purolator® PAF 11™ extended surface, pleated air filters utilize synthetic media made with continuous hydrophobic fibers that can withstand turbulent, high-velocity conditions. The filters perform to MERV 11 based on ASHRAE Test Standard 52.2-2012 and can be used in single-filter applications or as improved pre-filter substitutes for disposables, permanent metal filters or media pad/frame filters. Industry applications include pre-filtration for hospitals and general health care facilities, as well as food processing, pharmaceutical, and semi-conductor manufacturing plants.

The filters have a heavy-duty structure that features a two-piece, high wet-strength beverage board frame. This, coupled with integral corner flaps, give the PAF 11™ excellent durability and minimizes the likelihood of racking, warping or leaking, which can often cause alternative filter products to prematurely fail, costing users time and money.

The media pack of the PAF 11™ is securely bonded to the periphery of the frame with solvent-free, water-based glue to ensure that dirt-laden air does not bypass into the air handling system. The media’s continuous fiber structure and dual-stage electrostatic enhancement enables capture of very small particles, which makes PAF 11™ a better alternative to filters with conventional glass media. Particle capture is further enhanced by the aerodynamic and semi-tapered design of the pleats.

Markets:
Commercial and Industrial HVAC
Process Air Filtration

Applications:
Air handling systems
Single filter applications
Pre-filters in multi-stage systems

Benefits
Perform to MERV 11 based on ASHRAE Test Standard 52.2-2012
Synthetic media made from continuous hydrophobic fibers can withstand turbulent, high-velocity conditions
Continuously bonded to a corrosion resistant, expanded metal grid allowing a 96% open-face area
Continuous fiber structure and dual-stage electrostatic enhancement allow for capture of more small particles than conventional glass media substitutes
Wide range of sizes and air flow capacities available to meet the unique requirements of customers’ systems
Resistant to moisture, fire, mechanical damage, and microbial growth

Features
Filtration efficiency: MERV 11
Nominal thickness (in.): 1, 2, 4
Rated air velocity (fpm): 300–625
Air flow rates (cfm): 425–3,130
Initial resistances (in.w.g.): 0.12–0.60
Final resistance (in.w.g.): 1.0
Maximum operating temperature: 200 °F (93 °C)
Material of construction: two-piece, high wet-strength beverage board frame
Classified per UL Standard 900 for flammability


Характеристики

Nominal Filter Size:10x20x1
Air Filter Ply:N/A
Применение:Commercial & Industrial
Бренд:Purolator
Показатель эффективности фильтра:= 65% 1.0 - 3.0 micron
Тип фильтра:Die-Cut Panel
Header Size:N/A
Материалы изготовления:Moisture Resistant Beverage Board Frame
Максимальная рабочая температура:200
Рабочая среда:Synthetic
Merv Rating:MERV 11
Pleat Separator Type:Wire Back
Тип продукта:Pleated Air Filters
Rated Air Velocity:300
Для многократного использования:DISPOSABLE
Размер:10x20x1 inch
Соблюдены требования технических условий:Classified Per UL Standard 900 for Flammability

Технические характеристики 5257312929

Характеристики

Air Filter Ply
N/A
Header Size
N/A
Merv Rating
MERV 11
Nominal Filter Size
10x20x1
Pleat Separator Type
Wire Back
Rated Air Velocity
300
Бренд
Purolator
Для многократного использования
DISPOSABLE
Максимальная рабочая температура
200
Материалы изготовления
Moisture Resistant Beverage Board Frame
Показатель эффективности фильтра
= 65% 1.0 - 3.0 micron
Применение
Commercial & Industrial
Рабочая среда
Synthetic
Размер
10x20x1 inch
Соблюдены требования технических условий
Classified Per UL Standard 900 for Flammability
Тип продукта
Pleated Air Filters
Тип фильтра
Die-Cut Panel
