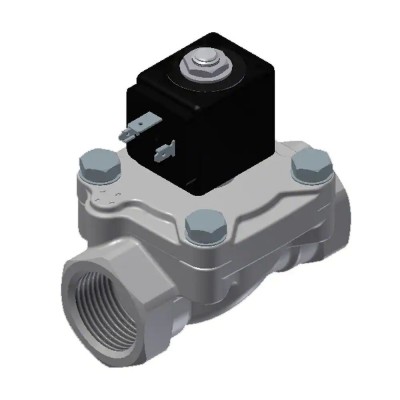

Solenoid Valves Stainless Steel, 2-way, Normally Closed, 221G6106-4538-486265F4-Copy

The 221G stainless Steel series is the most resistant valve to corrosion and to aggressive chemicals with the largest possibility of electrical connection.

Parker's anti-corrosive 221G Solenoid Valves is the most resistant solution for fluid control in even the harshest environments.

The 221G stainless steel valves offer unrivalled resistance to corrosion and aggressive chemicals, and with its ATEX certification, is suited for use in explosive environments.

With a durable high-grade 316L stainless steel construction plus fluoroelastomer (FKM) sealing to provide fluid and chemical resistance, the 221G series combines long life and reduced maintenance requirements in even the harshest operating environments. Typical applications include those found in oil & gas, petrochemical and food processing installations.

Due to their high flow rates of up to 170 litres/min., the new valves provide an opportunity to reduce the overall size of customer installations and cut costs by up to approximately 10%. The 221G water solenoid valves are based on proven technology that has evolved over 40 years and is used in a popular sister family offered in brass.

The modular design of the explosion proof solenoid valve allows assembly to a large range of coils including many with ATEX, IP67, UL/VDE approvals. This makes them ideal for use in applications where cleaning agents are present such as in car wash installations, industrial washing machines or food processing. The 221G ATEX solenoid valve in stainless steel is available in a two-way, normally closed format with port sizes ranging from 3/8” to 1” inch.

Markets:
• Car washing machinery
• Degreasing machines, automotive and industrial
• Industrial machinery
• Food products machinery
• Pasteurizing equipment, dairy machinery
• Smokers, food processing equipment
• Autoclaves, hospital and surgical
• Sterilizers, hospital and surgical
• Engineering service
• Fire protection engineering

Features/Benefits:
• The high-grade material stainless steel 316L permits the 221G to be a high corrosion resistant valve. In harsh environments stainless steel gives increased system reliability giving improved operational performance, productivity and costs.
• The high grade material stainless steel 316L plus fluoroelastomer (FKM) sealing increases chemical compatibility for different fluids
• The modularity design giving compatibility with the full range of FCDE coils including ATEX allows faster time to repair and large possibility of electrical connection (voltage, power, size, ATEX…)
• The optimized internal engineering design delivers high flow rate. This reduces cost installation thanks to pipe size reduced

Applications:
• Washing installations
• Food & Beverage Processing
• Sterilization / Disinfection
• Outdoor installations possibly in ATEX zones
