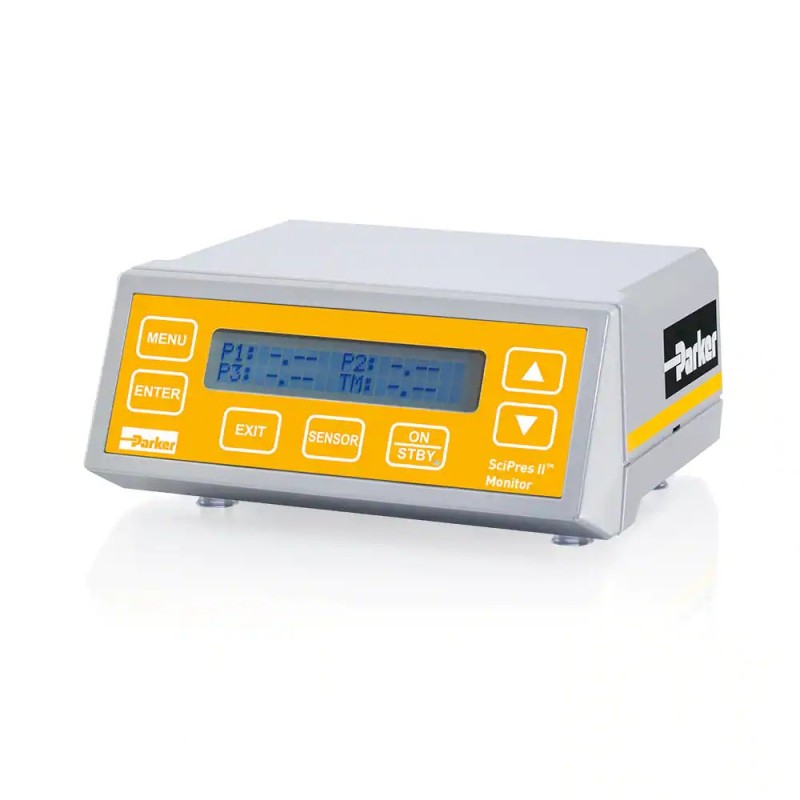

Single-Use Biopharm Pressure Sensor & Monitor - SciPres II Series 206-200-M

The next generation SciPres II Series is a patented digital sensing and monitoring system that simultaneously monitors, displays, and documents pressure with a single-use, pre-calibrated sensor.

Parker SciPres II monitors are designed for compatibility with single-use SciPres II pressure sensors to monitor, display, and document pressure from three single-use, pre-calibrated pressure sensors (P1, P2, and P3) plus a calculated transmembrane or differential pressure (TMP or DP). Utilizing SciDoc software, data is collected in real time and stored on a local laptop computer. A digital output alarm signals high and low pressure for each sensor connection while also monitoring transmembrane pressure (TMP) or differential pressure (dP).

Features & Benefits
• Pre-calibrated
• Automated & safe ‘walk-away’ operation
• Three simultaneous sensor inputs
• USB type B connector for serial data output
• 4-20 mA analog outputs
• RS-232 serial output
• Monitors, documents, & graphs data using SciDoc software
• Integrated high/low pressure alarms
• 100 - 240VAC 50/60 Hz

Regulatory Standards
• IEC 61326-1:2006, 2012/07/10 Ed:2
• IEC 61000-3-2:2014 Ed.4
• IEC 61000-3-3:2013 Ed.3
• Conforms to UL STD 61010-1:2012 Ed.3+ R: 29Apr2016
• Certified to CSA STD C22.2 No 61010-1-12:2012 Ed.3+U1;U2
• REACH Compliant
• RoHS 3 (EU 2015/863)
